With the exciting opportunity to design lakefront luxury townhouses located in Southside of the Seneca Lake, the design team has presented three unique design concepts, ranging from modern style to traditional gambrel style. The current site layout proposes the construction of 15 two-story townhouse units, complemented by a 3000 sqft clubhouse building. The project will feature two main types of units: inboard and end units. Each unit type will be based on a typical floor plan design specific to the inboard and end units, which will then be mirrored to create the 3-unit building block type and the 4-unit building block type.
  • Design Firm : Hunt EAS
  • Client : Welliver McGurie.Inc
  • Location : Lakefront at 4th Street, Schuyler NY
  • Project Architect : Michael Trapanovski , RA
  • Architect Designer : Shih-Jung Wu, Jim Burns
  • Structural Engineer : Hunt EAS
  • MEP Engineer : Hunt EAS
  • Project Status : Design Review with Budget Concern
Revit Rhino3D Twinmotion Photoshop Illustrator

PROJECT RESPONSE
SD
  • Provide Three Concept Design Options;Modern, Gambrel, Tranditional
  • Conceptual Digital Modeling (Rhino 3D)
  • Visual Rendering and Presentation Board
 DD
  • Convert Conceptual Digital Model into BIM Model (Revit)
  • Coordinating and Facilitating Collaboration with Structural and MEP Groups
  • Produce DD Drawings; Includes Floor Plan; Roof Plan, Elevation, Wall Section
  • Visual Rendering for Presentation

CONCEPTUAL DESIGN OPTIONS

Huntington Apartment Site Plan Huntington Apartment Site Plan

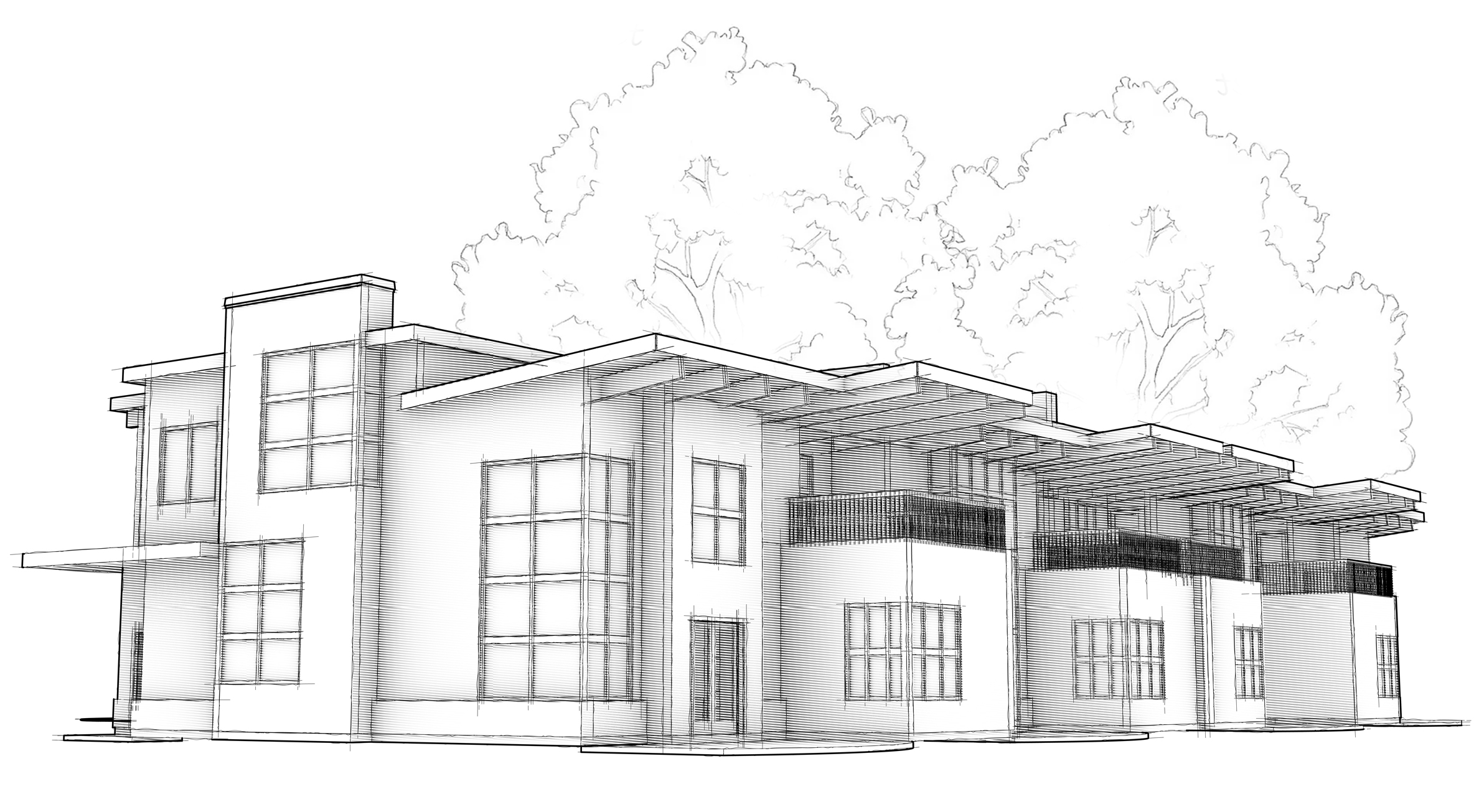

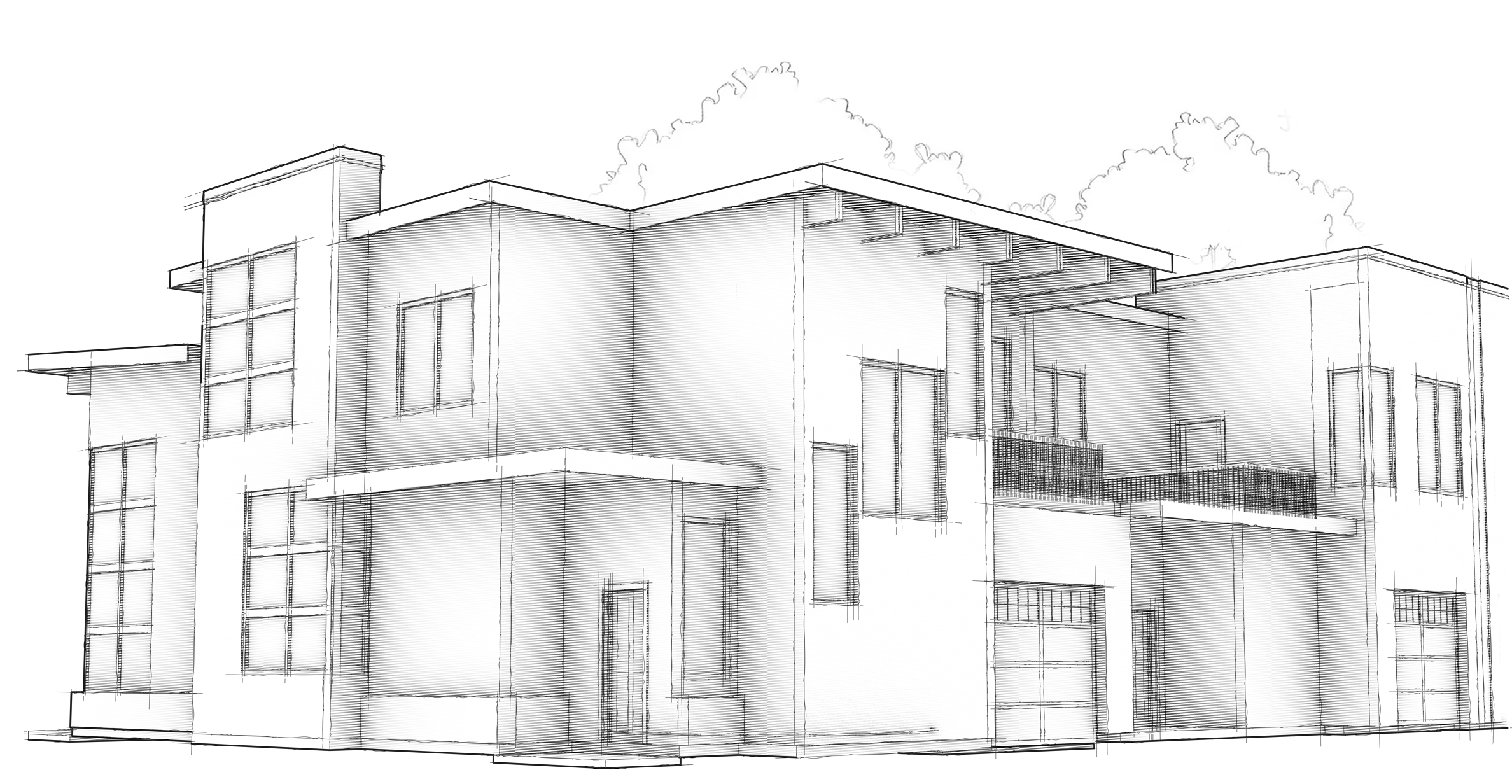

GLEN LANDING CONCEPTUAL DESIGN OPTION - MORDEN STYLE WITH GLULAM ROOF

Huntington Apartment Site Plan Huntington Apartment Site Plan Huntington Apartment Site Plan

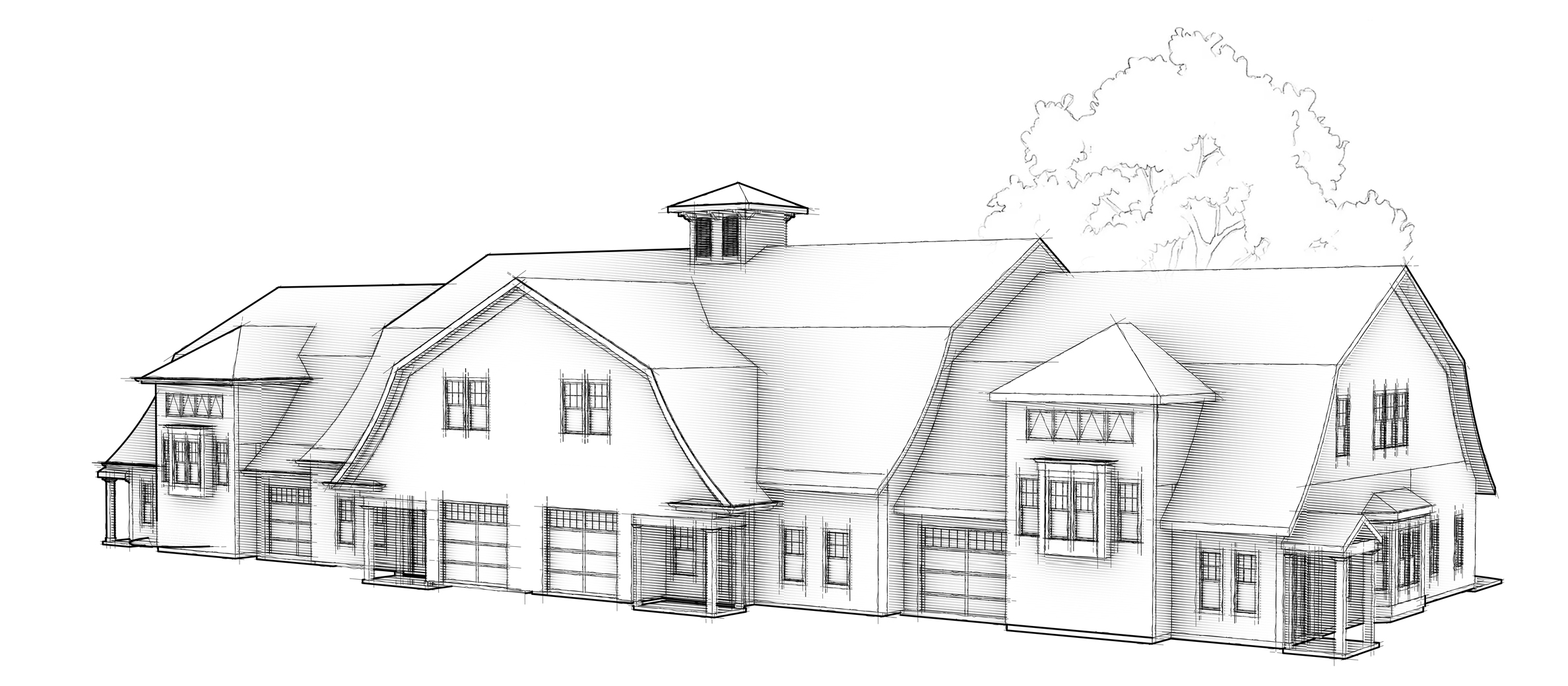

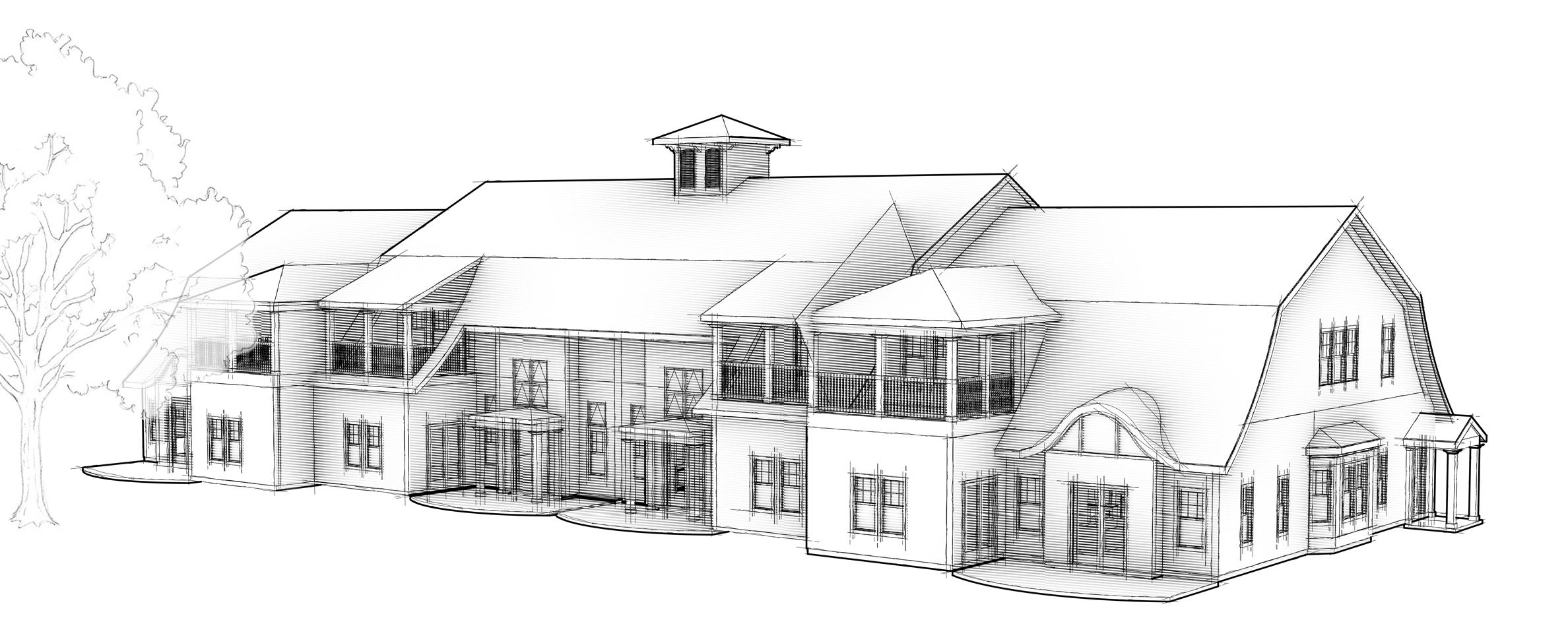

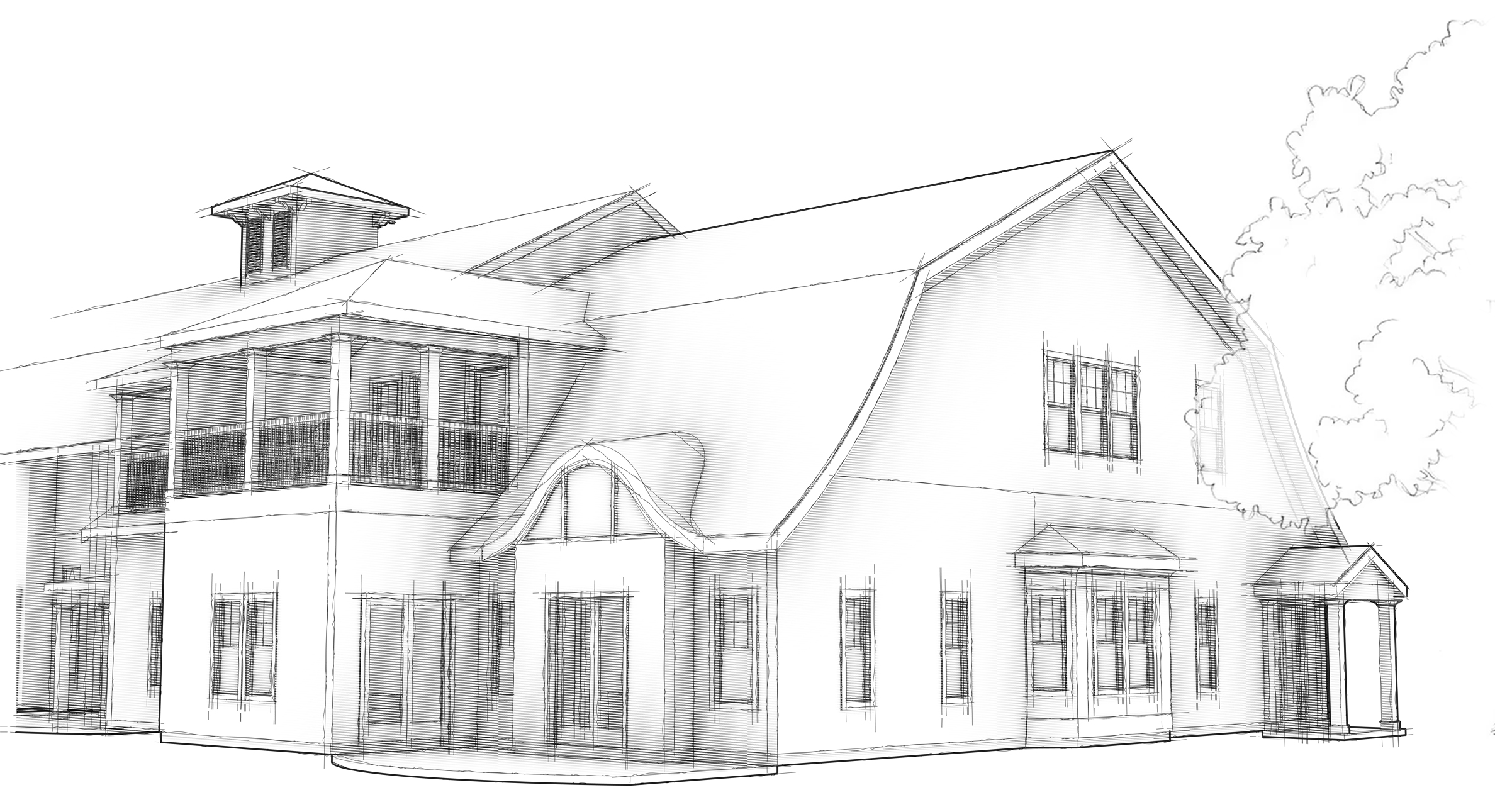

GLEN LANDING CONCEPTUAL DESIGN OPTION - GAMBREL STYLE WITH EYEBROW WINDOW

FOUR UNITS TYPE

Huntington Apartment Site Plan

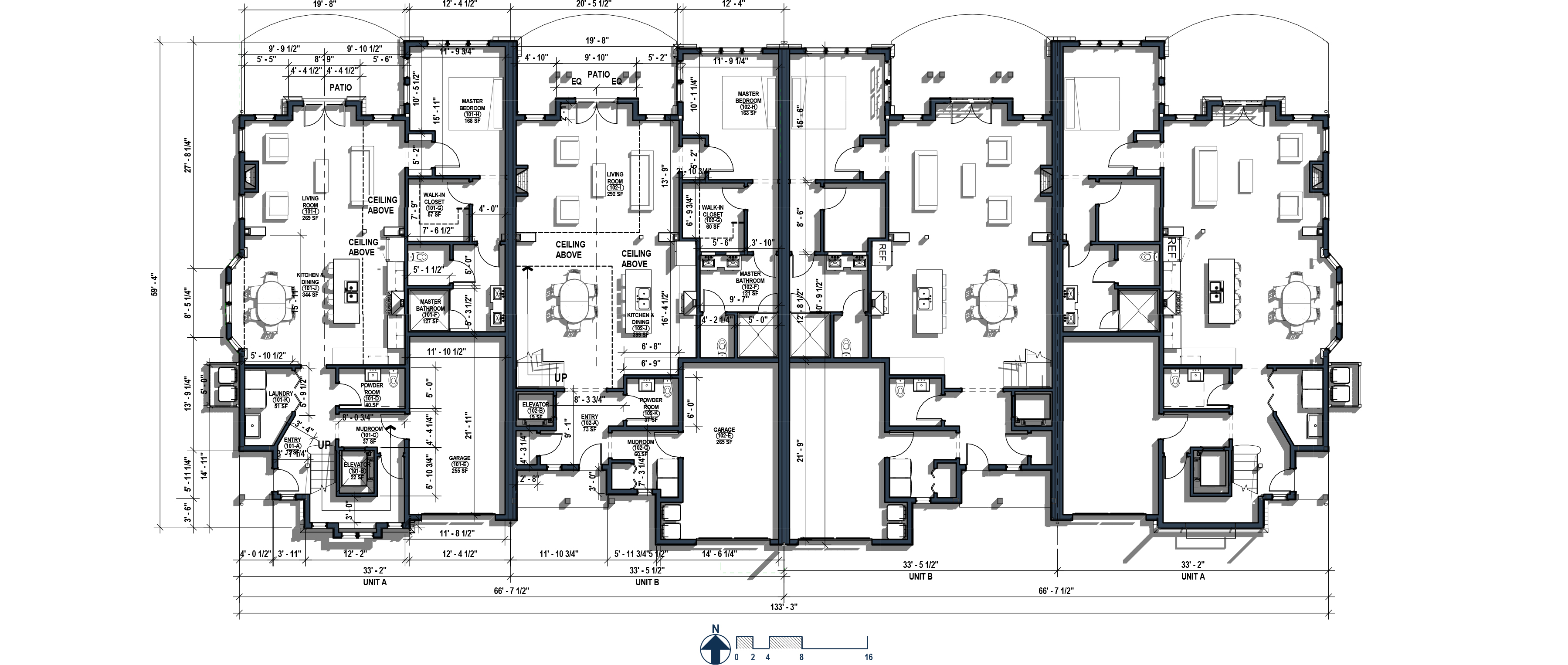

GLEN LANDING FOUR UNITS TYPE - FIRST FLOOR PLAN

Huntington Apartment Site Plan

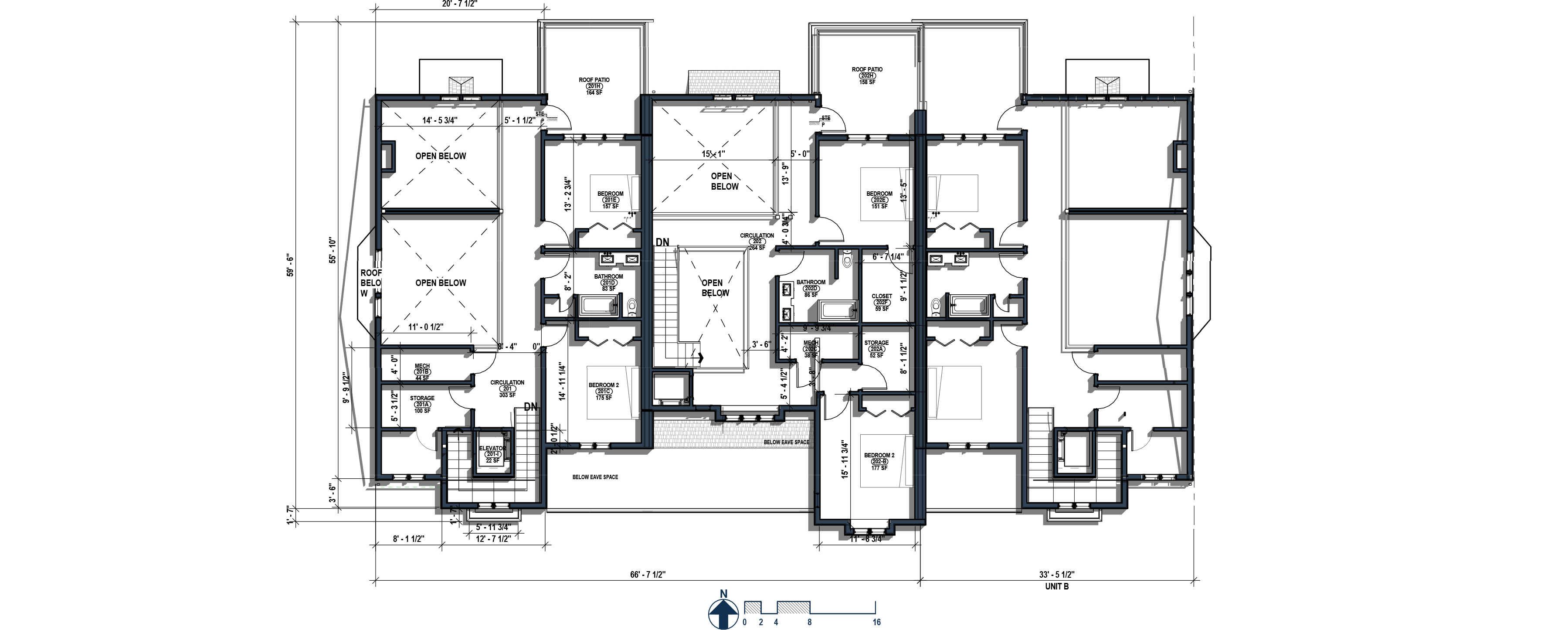

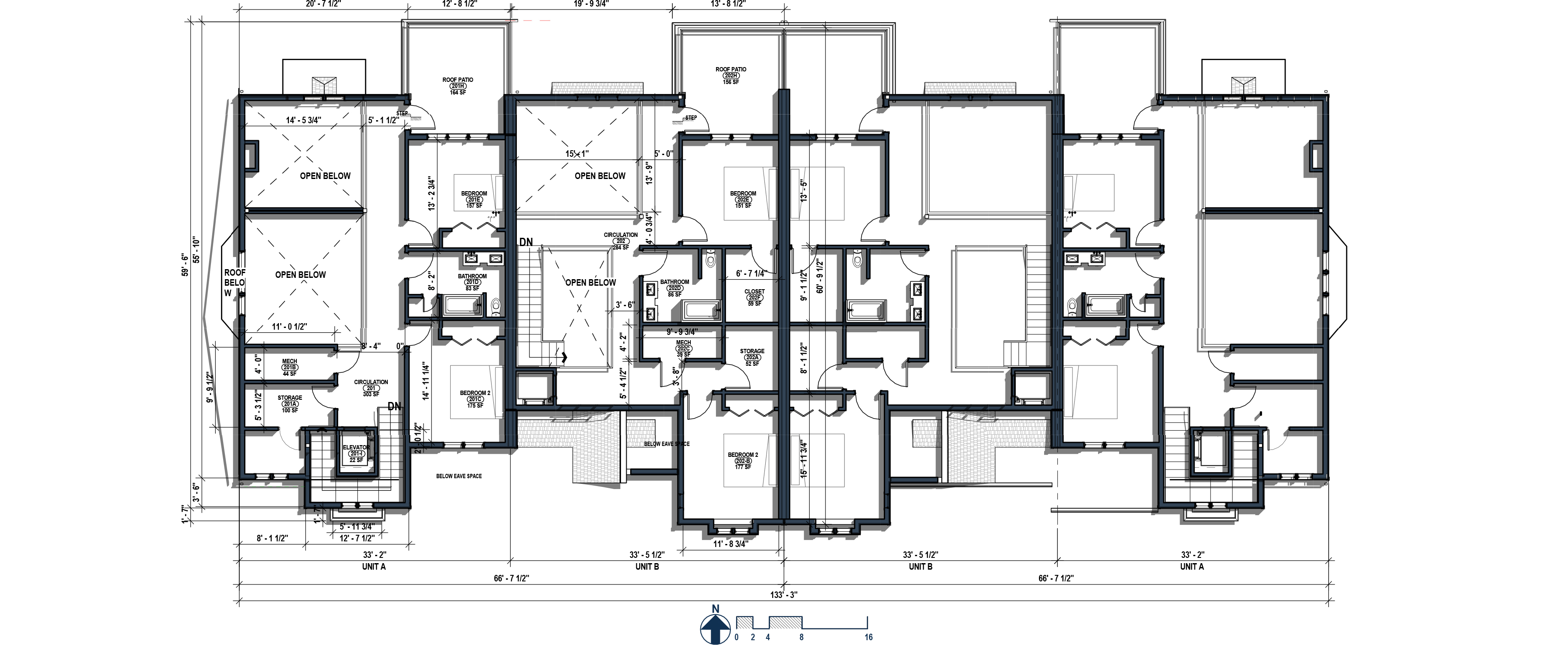

GLEN LANDING FOUR UNITS TYPE - SECOND FLOOR PLAN

Huntington Apartment Site Plan

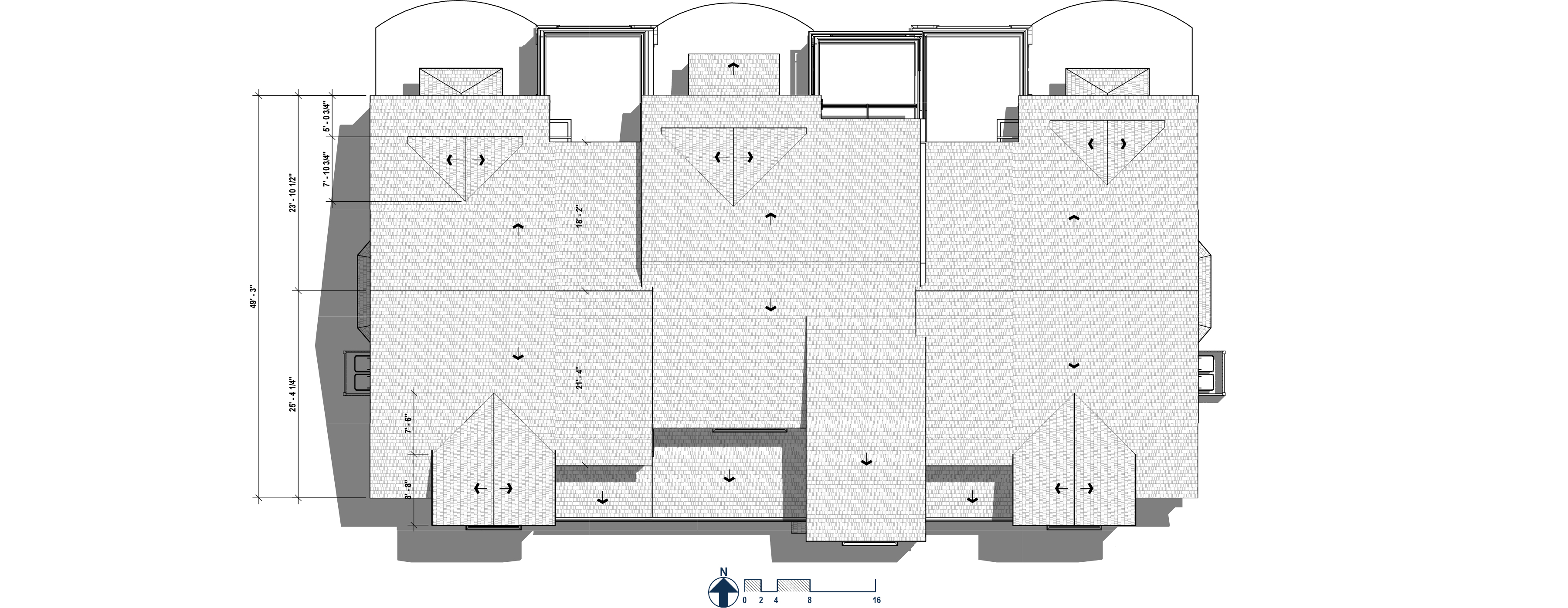

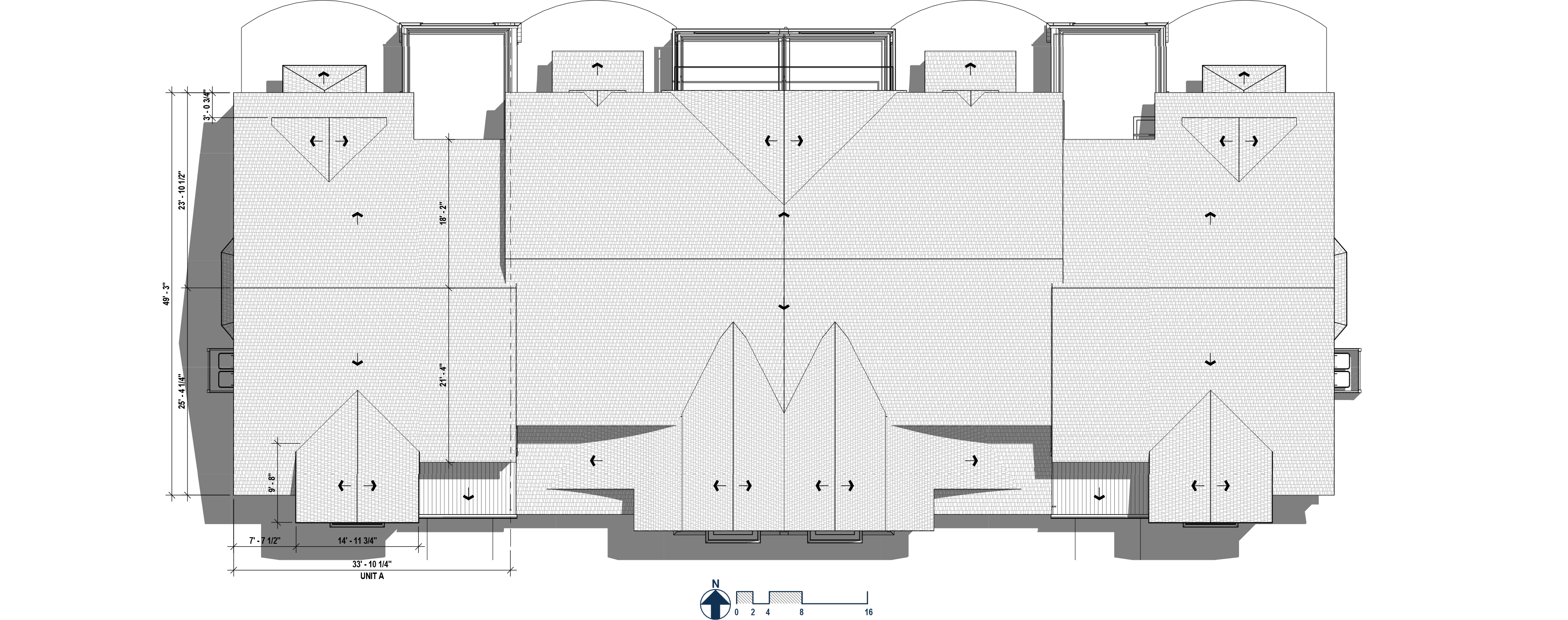

GLEN LANDING FOUR UNITS TYPE - ROOF PLAN

Huntington Apartment Site Plan

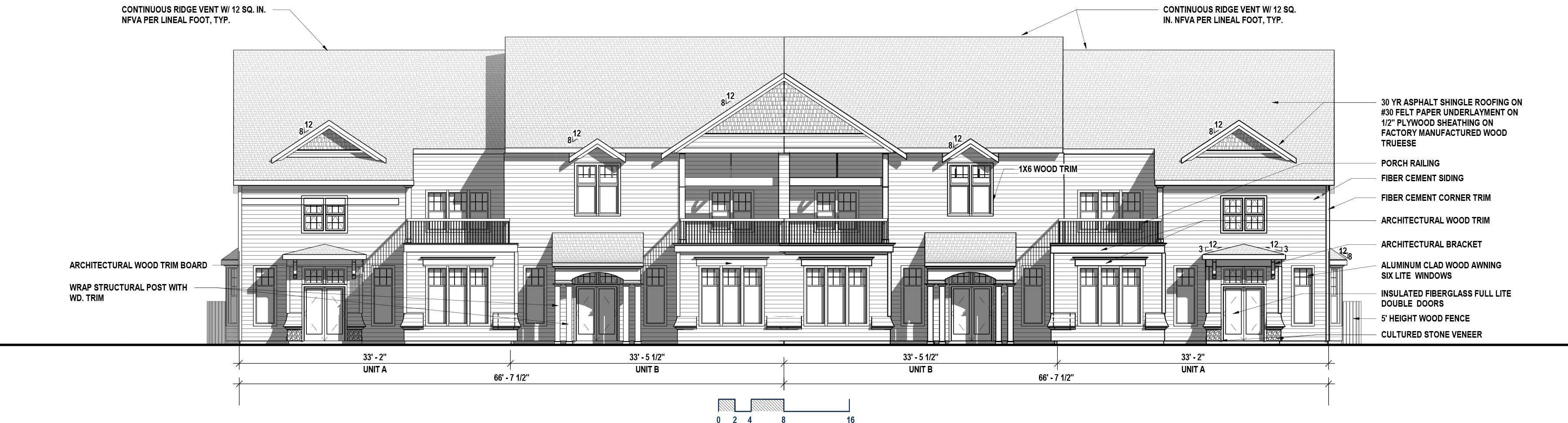

GLEN LANDING FOUR UNITS TYPE - NORTH ELEVATION

Huntington Apartment Site Plan

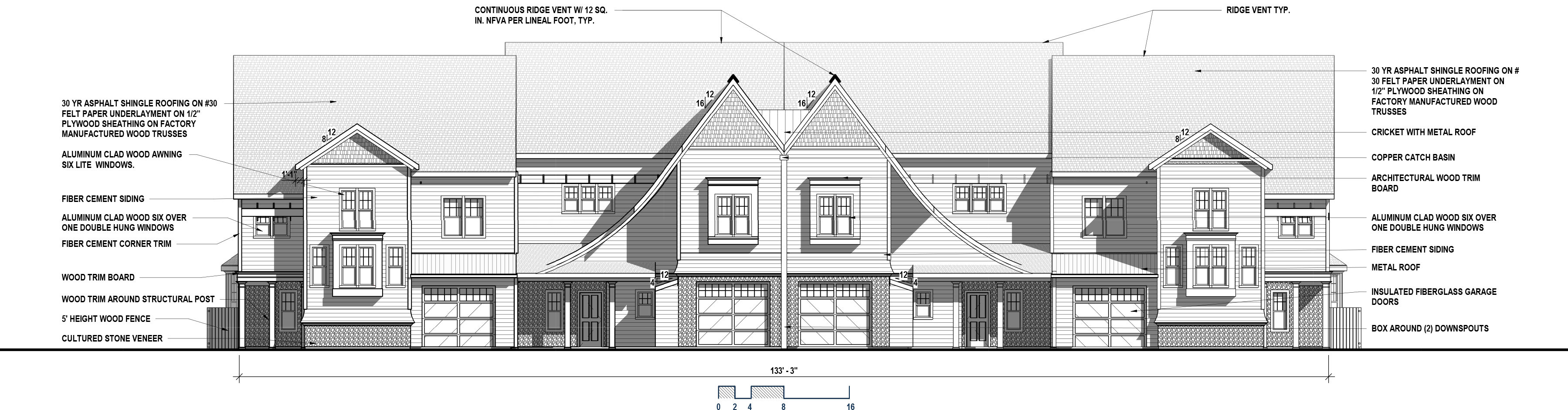

GLEN LANDING FOUR UNITS TYPE - SOUTH ELEVATION

Huntington Apartment Site Plan

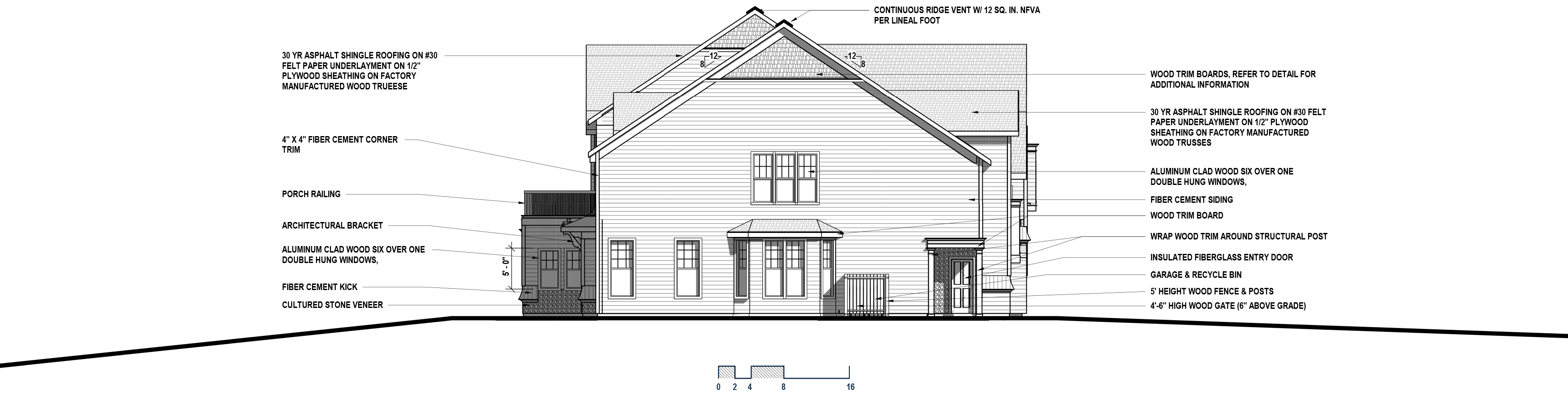

GLEN LANDING FOUR UNITS TYPE - WEST ELEVATION

THREE UNITS TYPE

Huntington Apartment Site Plan

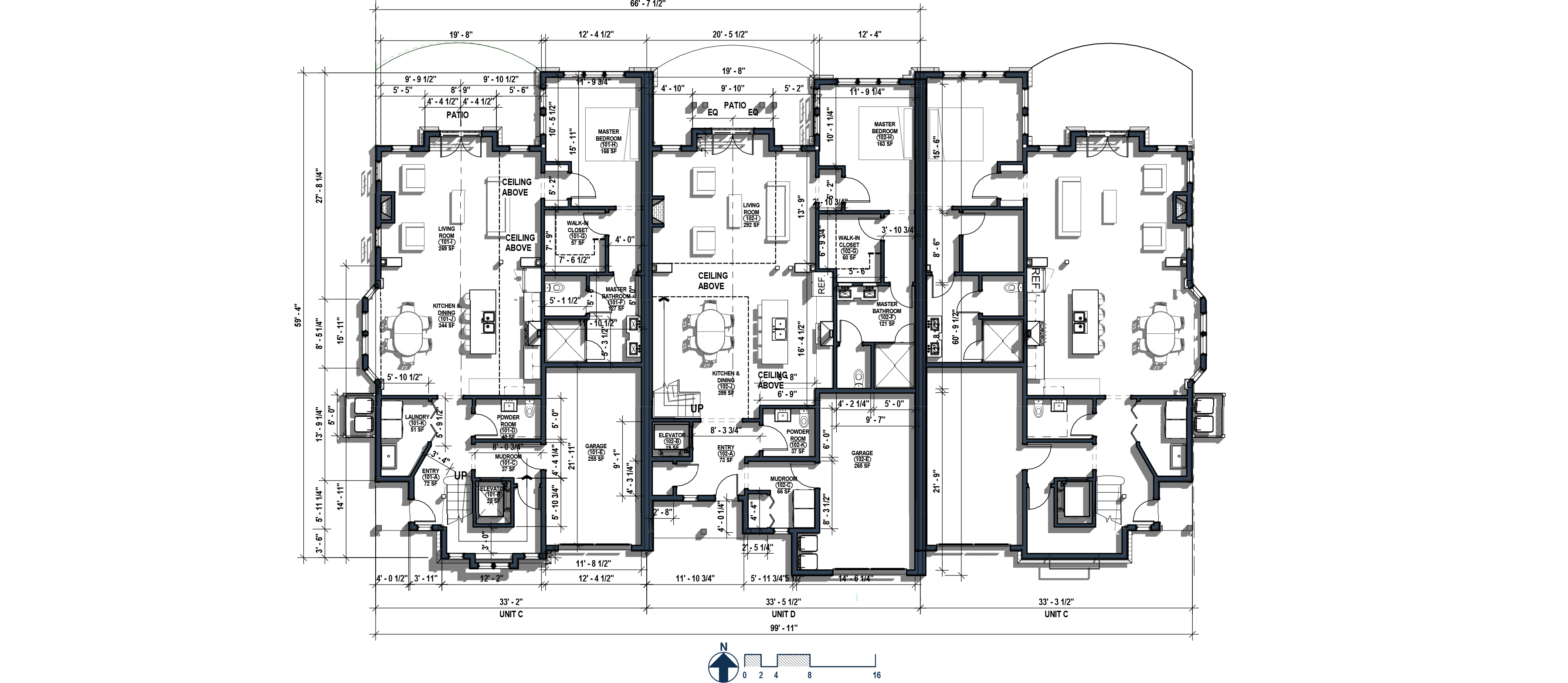

GLEN LANDING THREE UNITS TYPE - FIRST FLOOR PLAN

Huntington Apartment Site Plan

GLEN LANDING THREE UNITS TYPE - FIRST FLOOR PLAN

Huntington Apartment Site Plan

GLEN LANDING THREE UNITS TYPE - FIRST FLOOR PLAN

Huntington Apartment Site Plan

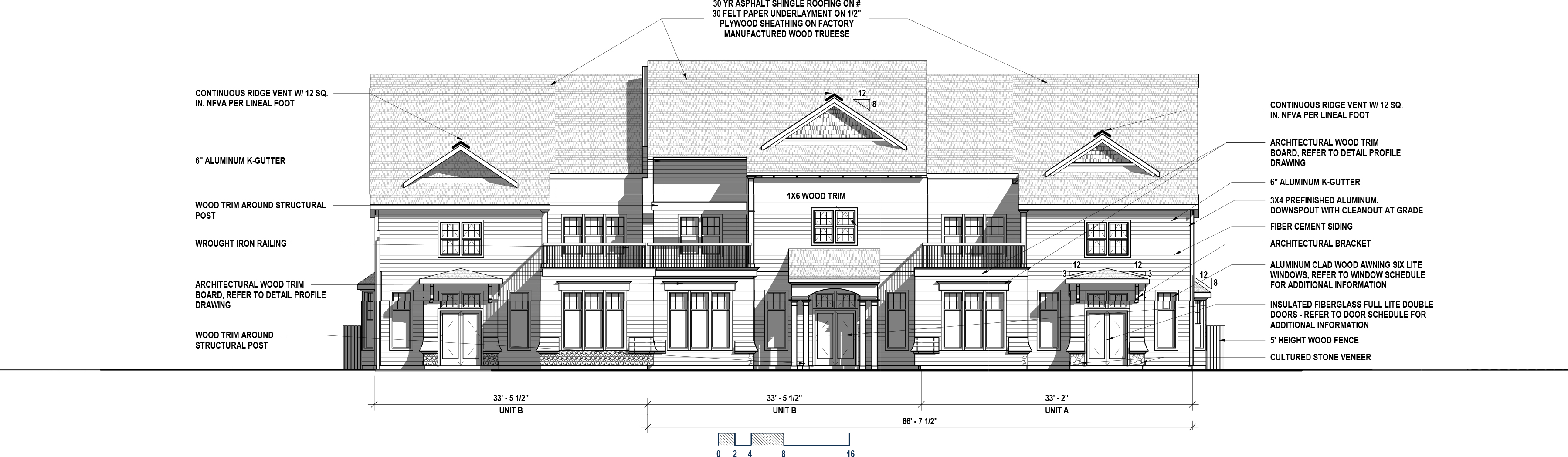

GLEN LANDING THREE UNITS TYPE - NORTH ELEVATION

Huntington Apartment Site Plan

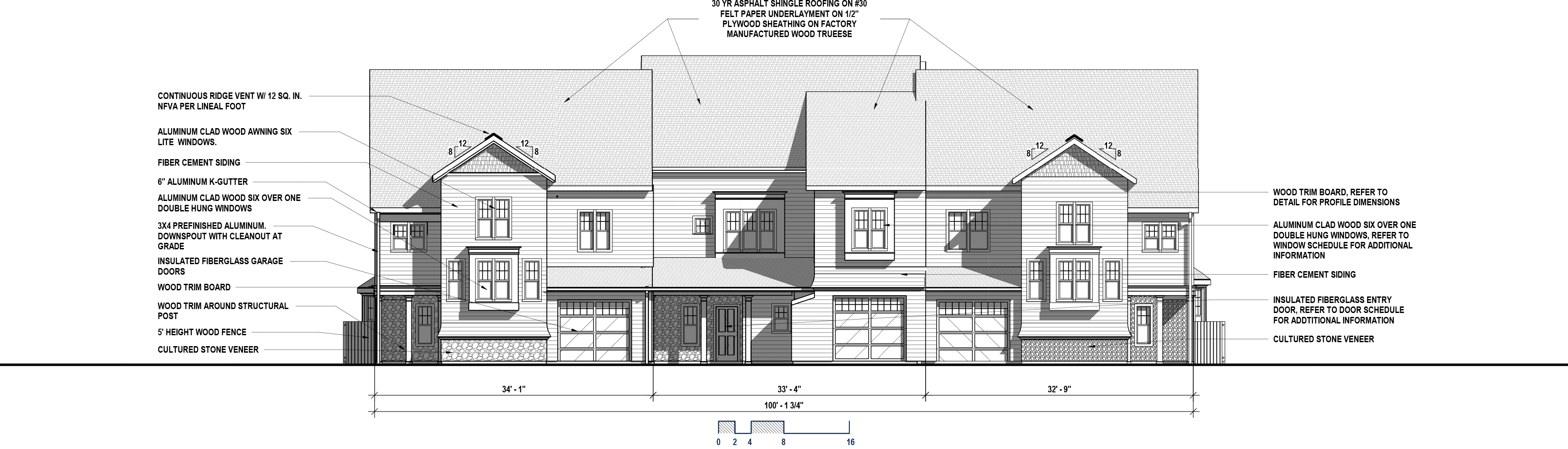

GLEN LANDING THREE UNITS TYPE - SOUTH ELEVATION

Huntington Apartment Site Plan

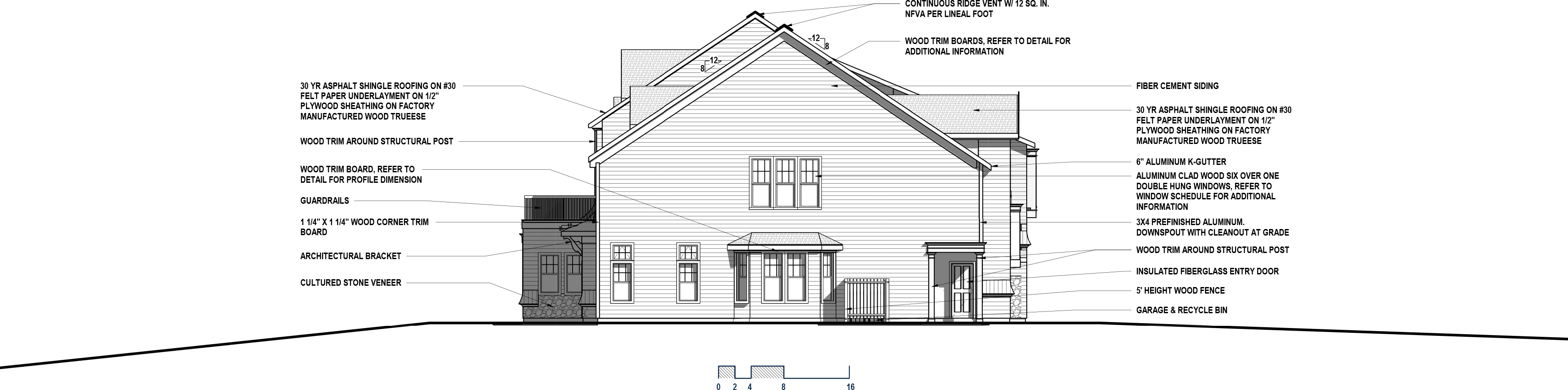

GLEN LANDING THREE UNITS TYPE - WEST ELEVATION

^
